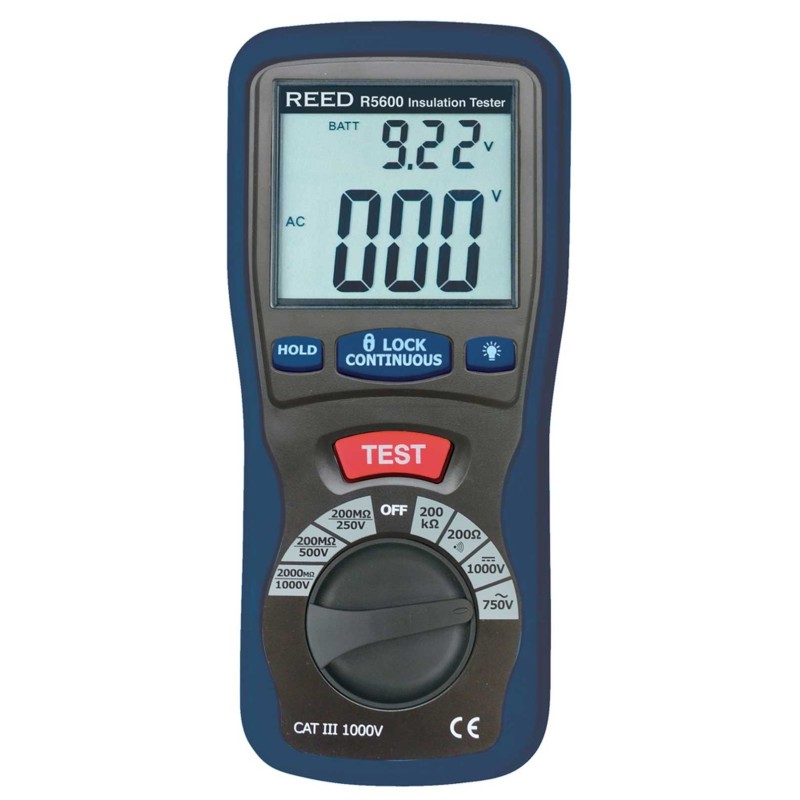

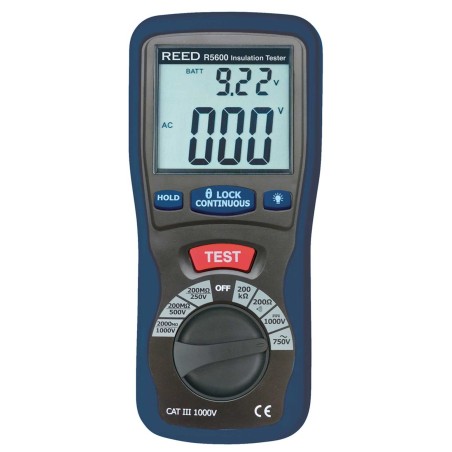

Insulation Tester.
Features:
- Backlit dual displays insulation resistance and test voltage simultaneously
- 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ
- Lock function and hanging strap for handfree operation
- Lo Ω function for testing connections
- Datahold function
- Double molded plastic housing for added protection
- Low battery indicator and auto shut off
- Cat. III, 1000V safety rating
Specifications:
Insulation Resistance Test Voltages: 250V, 500V, 1000V.
Insulation Resistance Range: 200MΩ, 2000MΩ.
Resistance Test Range: 200Ω, 2000Ω.
Voltage Range: 750VAC; 1000VDC.
R5600
100 Items
Data sheet
- Main category
- Industrial accessories
- Sub category
- Precision instruments by reed
- Sub sub category
- Electrical
- Name of the product
- Insulation Tester.
- Product code
- R5600
- Sort by keywords
- Electrical monitors
- Approved/Certified
- Meets Cat. III, 1000V
- Manufacturer
- Reed Instruments
- Measurement functions
- Is capable of measuring 250V, 500V or 1000V test voltages and insulation resistance up to 2000MΩ. Lo Ω function for testing connections.
- Includes
- Insulation Tester, test leads, alligator clip, hanging strap, hard carrying case and batteries
- Power supply requirements
- 6 AAA Batteries
- Length (in/cm)
- 12 in / 30.48 cm
- Width (in/cm)
- 9 in / 22.8 cm
- Height (in/cm)
- 3 in / 7.6 cm
- Weight (lb/kg)
- 3.1 lb / 1.4 Kg
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Product group
- Safety equipment
