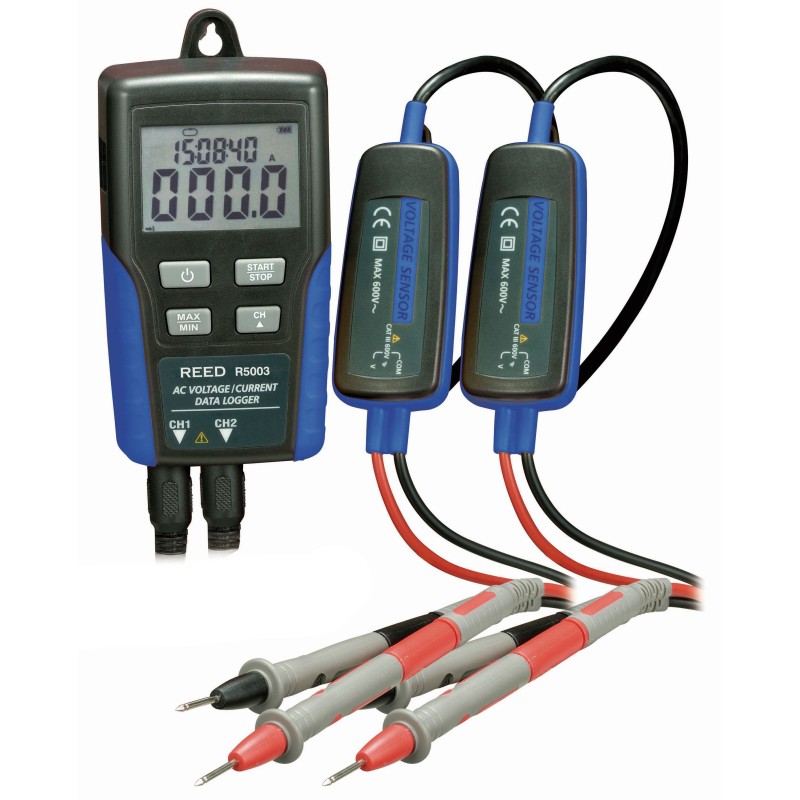

AC Voltage/Current Data Logger.
Features:
- Simultaneously measure 2 True RMS AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input.
- User programmable sample rates from 1 second to 24 hours.
- Stores up to 256,000 measurements.
- User programmable high/low alarms.
- LCD indicates time/date, current readings, Max/Min, peak hold and whether alarm settings have been exceeded.
- Download collected data through USB interface.
- Includes AC current clamp sensor and voltage sensor, USB cable, software, and battery.
Specifications:
AC Current Range: 10 to 200A.
AC Voltage Range: 10 to 600V
R5003
100 Items
Data sheet
- Main category
- Industrial accessories
- Sub category
- Precision instruments by reed
- Sub sub category
- Electrical
- Product code
- R5003
- Sort by keywords
- Electrical monitors
- Manufacturer
- Reed Instruments
- Measurement functions
- Voltage and current
- Includes
- 2 AC current clamp sensors, 2 voltage sensors, 4 large alligator clips, 4 basic test probes, USB cable, software, AC adapter and batteries
- Power supply requirements
- 4 AAA Batteries or AC Adapter
- Length (in/cm)
- 15.5 in / 39.37 cm
- Width (in/cm)
- 11.5 in / 29.21 cm
- Height (in/cm)
- 5 in / 12.7 cm
- Weight (lb/kg)
- 5.5 lb / 2.49 Kg
- Return conditions
- No returnable if used. For more information about our return policy, please refer to the "Orders and Returns" link on the home page
- Product group
- Safety equipment
